CNC Lathes: The Powerhouse of Precision in Modern Manufacturing
Table of Contents
Introduction
In modern manufacturing, precision and efficiency are paramount, and the CNC lathe plays a crucial role in achieving these goals.
A CNC lathe is a machine tool that utilizes Computer Numerical Control (CNC) technology to automate the turning and shaping of materials with incredible accuracy. From its humble beginnings to its advanced capabilities today, CNC lathes have revolutionized industries ranging from automotive to aerospace. In this article, we’ll explore what CNC lathes are, their history, how they work, the different types, and the operations they perform.

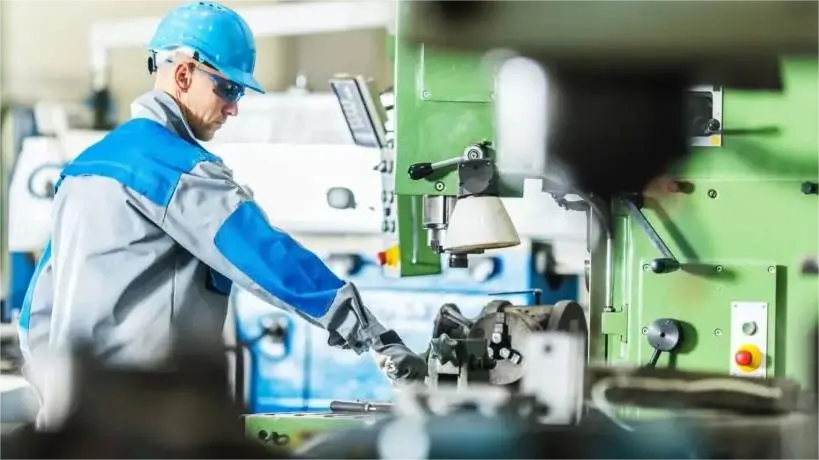

What is a CNC Lathe?
A CNC lathe is an advanced machine tool that uses computer programming to control the turning and shaping of materials, such as metals, plastics, and wood. This machine integrates traditional lathe principles with computer automation to perform complex tasks with high precision and efficiency. CNC lathes are used in various industries for manufacturing intricate parts and components, and they are essential in machine shops worldwide for their ability to handle a wide range of materials.
A Brief History of the CNC Lathe
The evolution of the CNC lathe began in the mid-20th century. In the 1940s and 1950s, pioneers such as John T. Parsons and Frank L. Stulen, working in the aerospace industry, developed the first numerically controlled machines. These early versions paved the way for the modern CNC lathe, enabling faster, more accurate machining processes that significantly improved manufacturing efficiency.
How Does a CNC Lathe Machine Work?
A CNC lathe works by automating the machining process through computer programming. The process typically includes these steps:
- Design Phase: The operator creates a design using CAD software, specifying dimensions and shapes.
- Programming: The design is translated into G-code, which tells the CNC lathe how to move and cut the material.
- Setup: The correct cutting tools are installed, and the workpiece is secured on the machine.
- Machining Process: The CNC lathe begins to rotate the workpiece while the cutting tool shapes the material according to the programmed design.
- Quality Check: The lathe monitors the cutting process and adjusts for any discrepancies to ensure the final part meets the required specifications.
Key Components of a CNC Lathe
A CNC lathe consists of several key components that work together to ensure precision:
- Main Spindle: Rotates the workpiece.
- Chuck: Holds the workpiece securely.
- Tailstock: Supports longer workpieces.
- Tool Turret: Holds and rotates the cutting tools.
- Control Panel (CNC Controller): Allows operators to input commands and monitor operations.
- Bed: Supports the entire assembly.
- Carriage: Moves the cutting tool along the workpiece.
- Coolant System: Cools the cutting area and extends tool life.
- Chip Conveyor: Removes debris from the workspace.

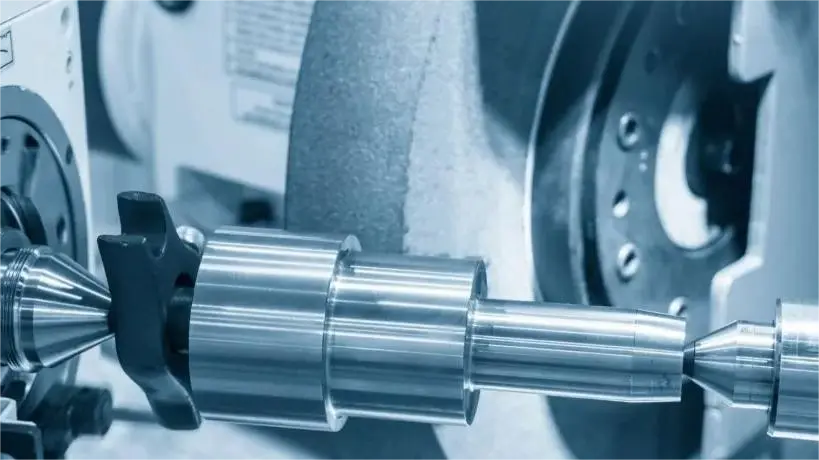

Types of CNC Lathes
CNC lathes come in various types, each suited for different machining needs:
- 2-Axis CNC Lathe: Ideal for basic, symmetrical parts like rods and shafts, it operates along two axes—X (diameter) and Z (length).
- 3-Axis CNC Lathe: Adds a Y-axis for more complex tasks, such as off-center drilling and advanced shaping.
- 4-Axis CNC Lathe: Introduces a C-axis, which allows the spindle to rotate perpendicularly to the cutting plane, enabling even more complex designs.
- 5-Axis CNC Lathe: Adds two more axes, allowing for the machining of complex geometries and angles, perfect for high-precision components.
- 6 or More Axis CNC Lathes: These lathes offer unparalleled flexibility and precision, capable of multi-directional machining for ultra-complex parts.
Horizontal vs. Vertical CNC Lathes

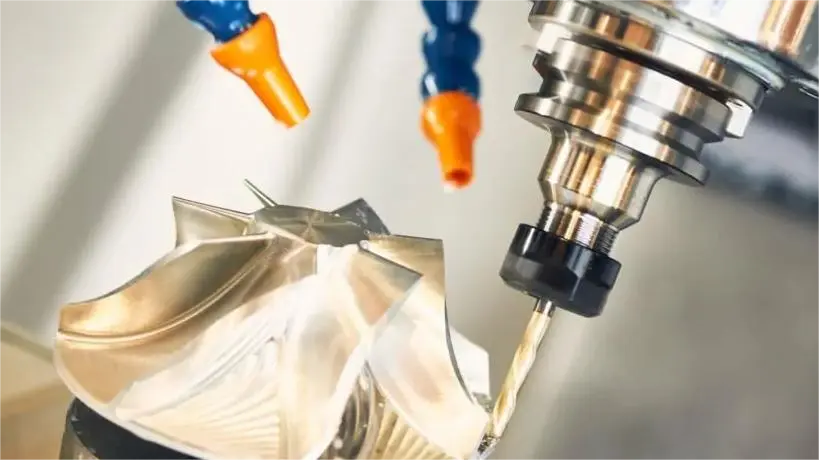

CNC Lathe Operations
Software Used in CNC Lathe Programming
Conclusion
