How Accurate Are 3D Printed Parts? Achieve Precision in 2024!
Table of Contents
Introduction
3D printing has revolutionized manufacturing by allowing for rapid prototyping and complex part creation. However, one critical factor when creating parts via 3D printing is dimensional accuracy—how closely the printed part matches its intended dimensions.
This accuracy depends on multiple factors, including the 3D printing technology, printer quality, materials, design complexity, and user-defined parameters. While it’s impossible to achieve 100% dimensional accuracy in any manufacturing process, there are many ways to optimize for improved precision. Understanding these factors can help users make more informed choices and achieve better results in their 3D printing projects.
This article explores what dimensional accuracy means, compares the accuracy of various 3D printing technologies, and provides practical tips for improving 3D printing precision.
Understanding Dimensional Accuracy

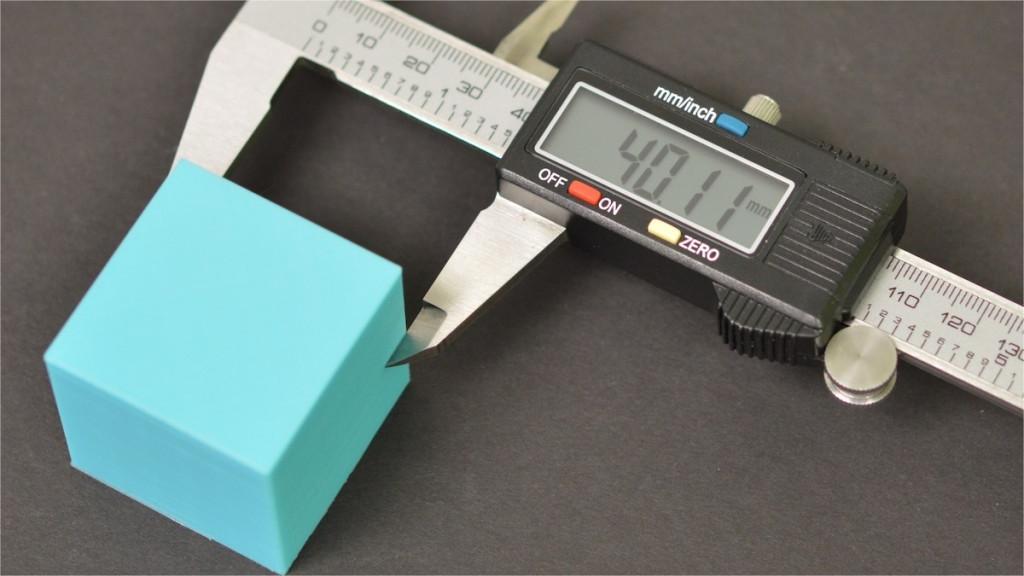

Dimensional accuracy refers to the degree to which a printed part aligns with the intended dimensions of the original design. Measured in units like ± 1% or ± 0.5 mm, it represents the part’s deviation from the specified dimensions. This concept should not be confused with tolerance (acceptable deviation specified by the customer), resolution (level of detail), or precision (consistency in repeated prints).
Dimensional Accuracy Across 3D Printing Technologies
Each 3D printing technology offers different levels of dimensional accuracy:
- Fused Deposition Modeling (FDM): Commonly used for prototyping, desktop FDM printers achieve around ± 0.5 mm accuracy, while industrial FDM machines reach ± 0.2 mm.
- Resin Printing (SLA and DLP): Known for high accuracy, desktop resin printers achieve ± 0.1 mm, with professional models reaching ± 0.01 mm.
- Selective Laser Sintering (SLS): This technology is valued for producing complex shapes with good accuracy, typically around ± 0.3 mm.
- Powder Bed Fusion (SLM): Used for metal printing, this method reaches ± 0.1 mm accuracy but often requires post-processing.
- Material Jetting: With an accuracy of around ± 0.05 mm, this technology minimizes warping due to its lack of heat application.
Additional Factors Impacting Dimensional Accuracy
Apart from technology type, other factors can affect dimensional accuracy:
- Printer Quality: High-end printers tend to produce more accurate results than entry-level models.
- Part Design: Complex or unsupported features are harder to print precisely. Large parts may also introduce inaccuracies.
- Materials: Some materials print more accurately than others; flexible or specialized filaments may reduce precision.
- Printing Parameters: Proper calibration and optimized settings improve accuracy. For instance, slower printing speeds can yield more precise details.
Tips for Improving 3D Printing Accuracy
Although lower-cost printers may lack the precision of industrial machines, users can enhance their accuracy with these practices:
- Design for Printing: Simplify difficult features that could compromise accuracy.
- Export High-Resolution STL Files: High-quality files reduce deviations.
- Calibrate the Printer Regularly: Consistent calibration helps maintain accuracy.
- Use Supports Where Needed: Stabilize parts during printing to avoid warping.
- Maintain Temperature Control: Heated print beds and chambers minimize shrinkage and warping.
- Adjust Printer Tension and Maintenance: Keep belts properly tensioned and maintain straight rods and rails.
- Reduce Print Speed: Slower speeds may improve detail, though excessive reduction may cause other issues.
Handling Warping and Shrinkage
Warping and shrinkage are common in 3D printing, impacting dimensional accuracy. Caused by temperature fluctuations, these deformations can affect the final dimensions of the part. To counteract these effects, users can:
- Use Print Simulation Software: This helps predict and manage possible deformations.
- Employ Heated Print Beds or Rafts (for FDM): These help reduce warping.
- Select Stiffer Materials (for Resin Printing): Rigid materials can prevent shape changes.
- Allow Gradual Cooling (for SLS): This reduces temperature-related distortions.
Conclusion
